LD SYSTEMS MAUI Series 200 Watts RMS Ultra-Portable Column PA System with Mixer & Bluetooth (White)

MAUI-5W

LD Systems

Whatsapp for enquiry Email for enquiry

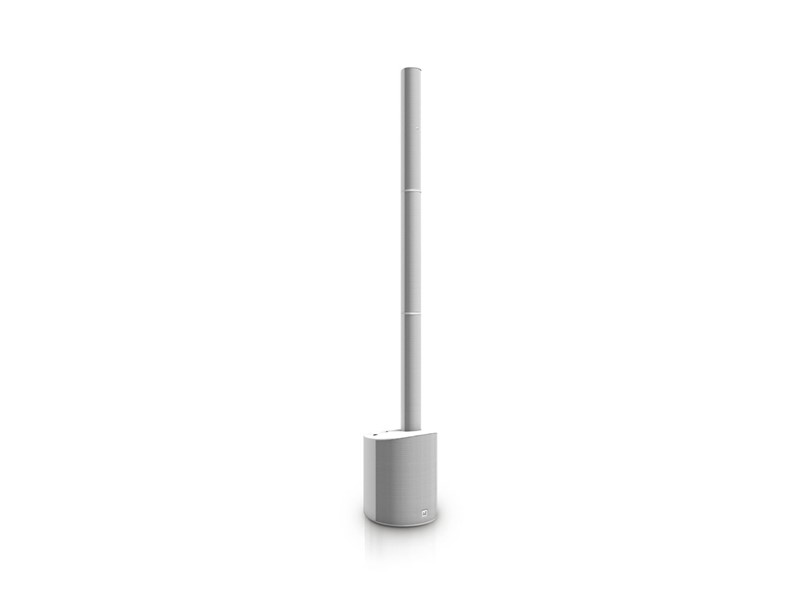

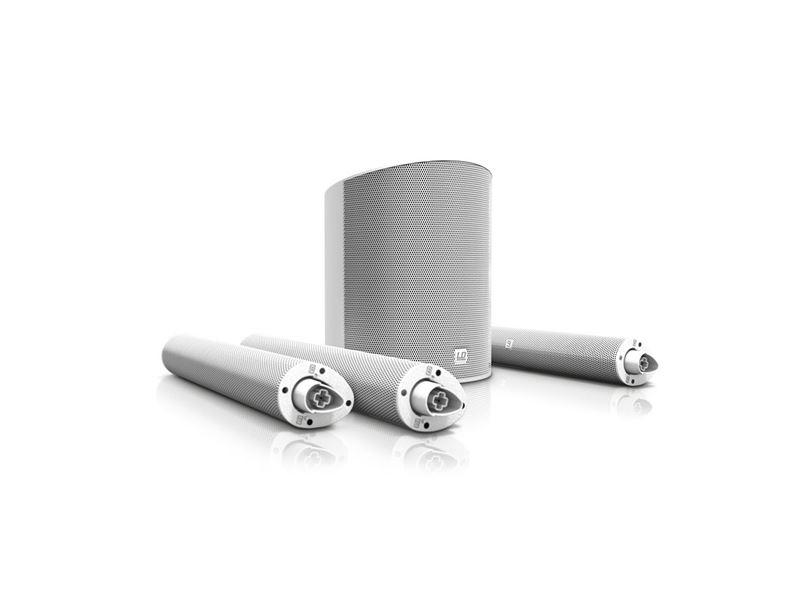

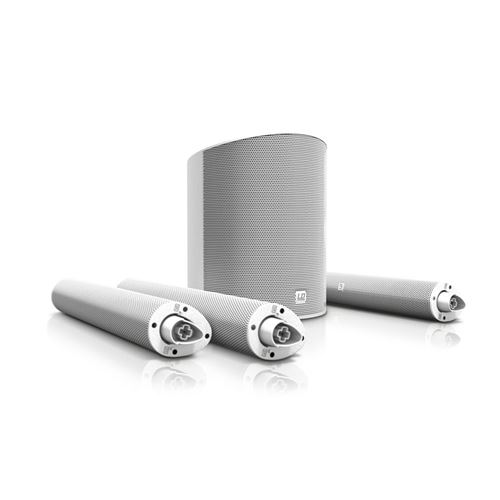

The ultra compact MAUI 5 weighs in at about 11 kg while delivering 800 watts of peak power and a maximum SPL of 120 dB. Providing both sound reinforcement with extended coverage and feedback resistant monitoring the subwoofer base and 3-piece column system assembles in seconds with custom multipin connectors. The junior member of the MAUI family is most easily portable and fits onto any car seat.

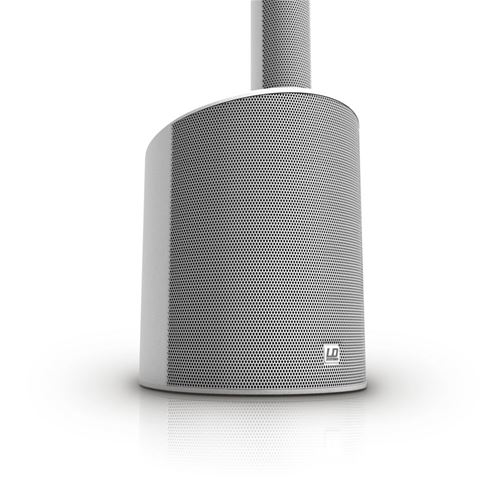

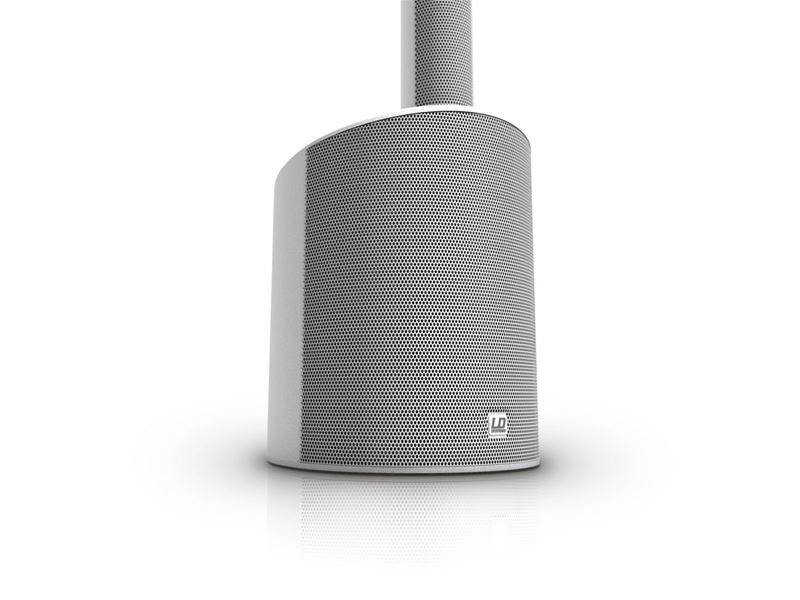

The vented 8" subwoofer also houses the system's Class D amplification with overcurrent, short circuit and thermal protection, LD Systems' proprietary LECC digital processing and a 4-channel mixer. Featuring Bluetooth technology for wireless streaming and microphone, line level and hi-Z inputs which can be used simultaneously the MAUI 5 lets you connect a wide variety of sources including music players and instruments such as keyboards or guitars. Individual level controls, subwoofer and master volumes plus high shelf filtering for room correction enable a perfectly balanced performance. The MAUI 5 is also available in black (LDMAUI5).


General
Weight 11,3 kg
Product type PA Complete Systems
Color white
Max. SPL (continuous) 114 dB
Max. SPL (peak) 120 dB
Frequency response 50 - 20000 Hz
Dispersion (H x V) 120° x 20 °

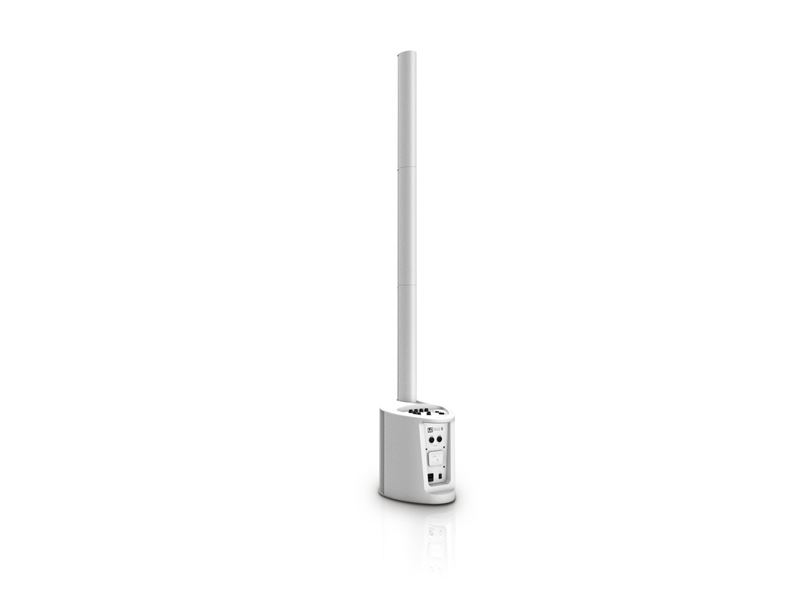

Overall height 1985 mm
Other features 4 channel mixer, Bluetooth, DSP-based signal processing
Woofer characteristics
Low/mid driver dimensions 8 "
Woofer size 203.2 mm
Woofer magnet Ferrite
Woofer brand Custom-made
Woofer voice coil 2 "
Woofer voice coil (mm) 50.8 mm
Cabinet construction Bass Reflex
Cabinet material ABS plastic
Subwoofer width 305 mm
Subwoofer height 405 mm
Subwoofer depth 395 mm

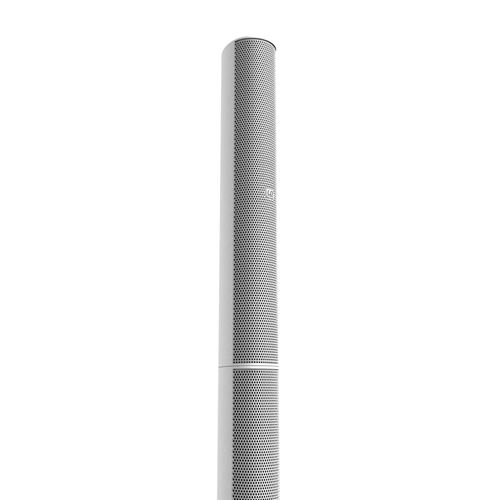

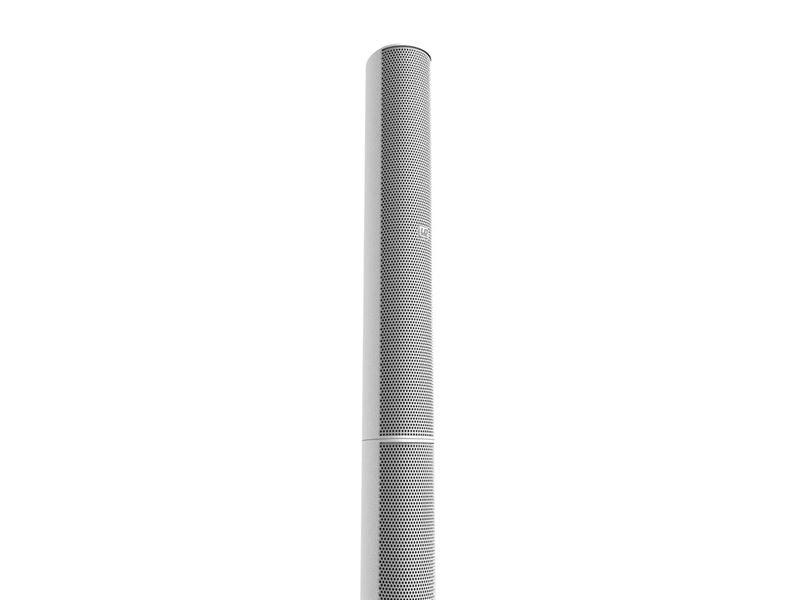

Mid/Hi System
Midrange size 4 x 3 "
Midrange size 4 x 76.2 mm
Midrange magnet Neodymium
Midrange brand Custom-made
Midrange voice coil 1 "
Midrange voice coil 25.4 mm
Mid/Hi system impedance 4 Ohm(s)
Loudspeaker inputs 1
Speaker input connections Custom-made multipin
Cabinet construction mid/high Closed
Mid/Hi system cabinet material ABS plastic
Mid/Hi system width 82 mm
Mid/Hi system height 535 mm
Mid/Hi system depth 105 mm
Amplifier module (integrated in subwoofer)
Amplifier Class D
Amplifier output system (RMS) 200 W
Amplifier output system (peak) 800 W
Protection circuits DSP-based multiband limiter, over-current, short circuit, thermal overload
Cooling Convection

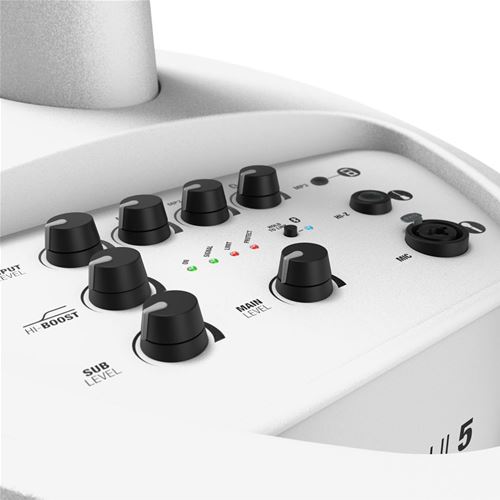

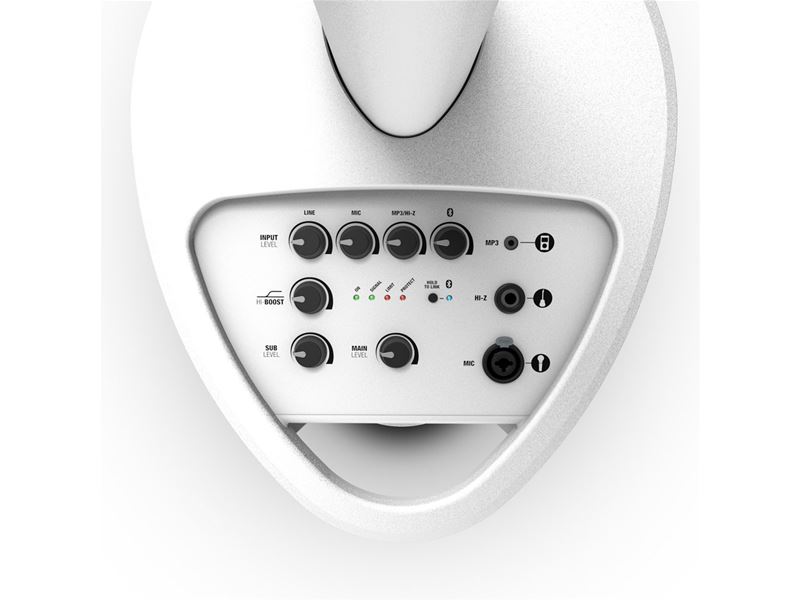

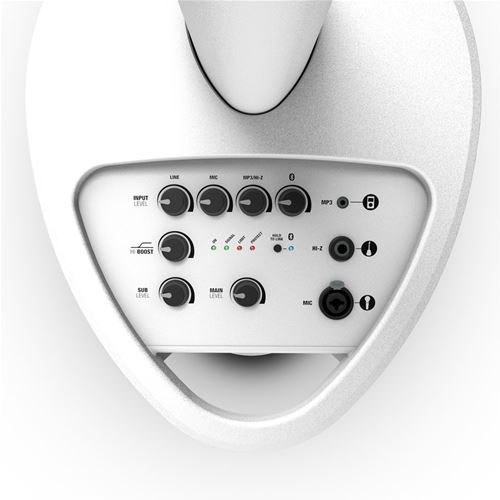

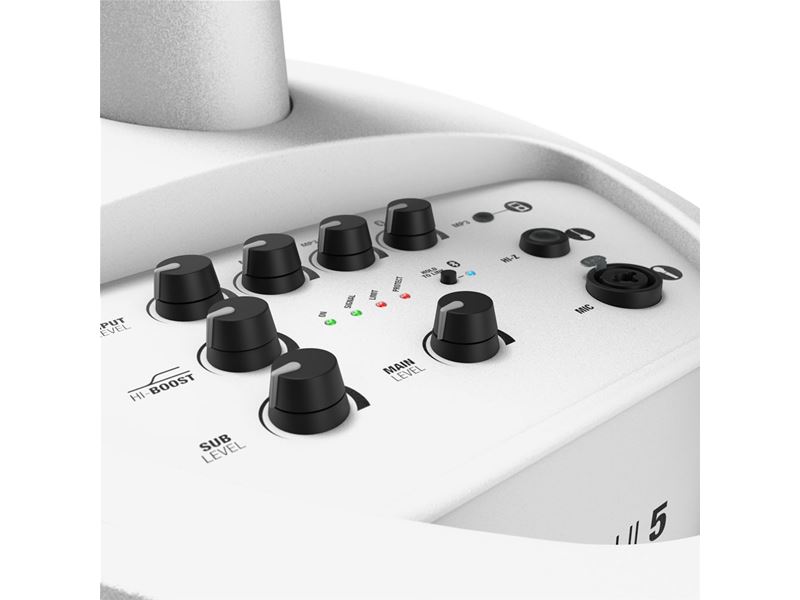

Controls BT level, BT pairing, limiter, Line level, Main level, Mic level, MP3 / Hi-Z level, On, Protect (protection circuit engaged), Signal, Sub level
Indicators Limit, On, Protect (protection circuit engaged), Signal
Operating voltage Switching power supply
Operating voltage 100 V AC - 120 V AC, 50 - 60 Hz, 200 V AC - 240 V AC, 50 - 60 Hz (Automatic conversion)

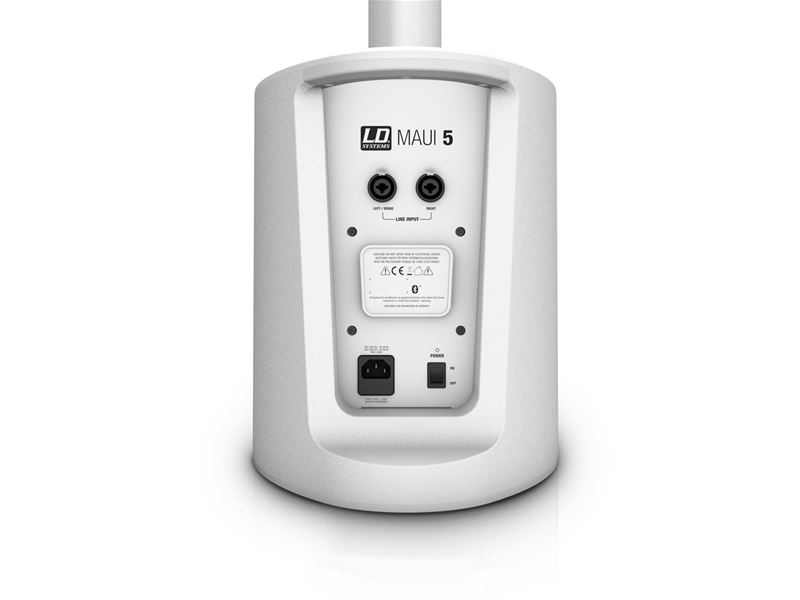

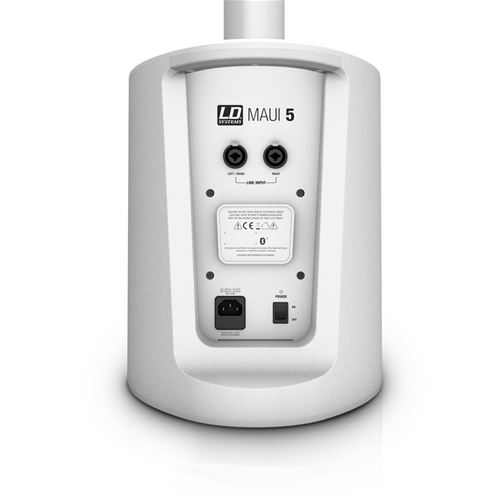

Line inputs 2 x stereo
Line input connectors 6.3 mm jack, XLR
Mic inputs 1
Mic inputs 6.3 mm jack, XLR
MP3 inputs 1
MP3 input connectors 3.5 mm jack
Hi-Z inputs 1
Hi-Z input connectors 6.3 mm jack
Loudspeaker outputs 1
Speaker output connections Custom-made multipin
DSP characteristics
Bit depth AD/DA converter 24 / 24 bit
Internal sampling frequency 48 kHz
