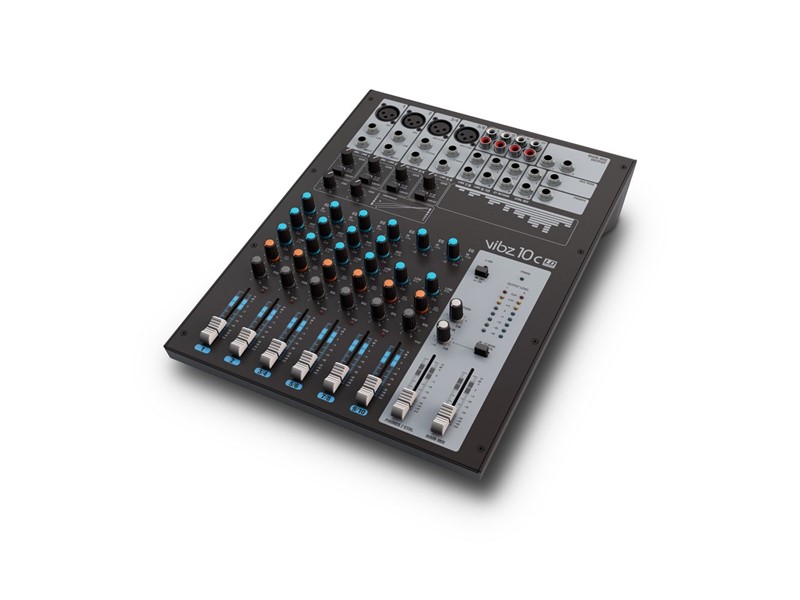

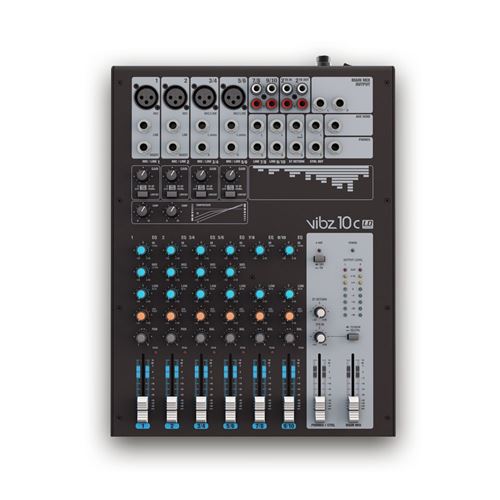

LD Systems | VIBZ-10C | LD SYSTEMS VIBZ Series 10 Channel Mixing Console with Compressor

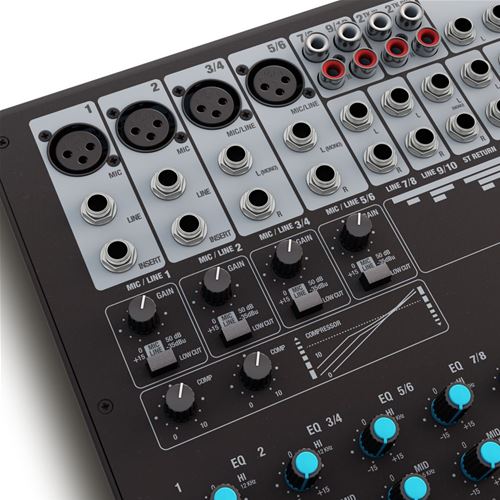

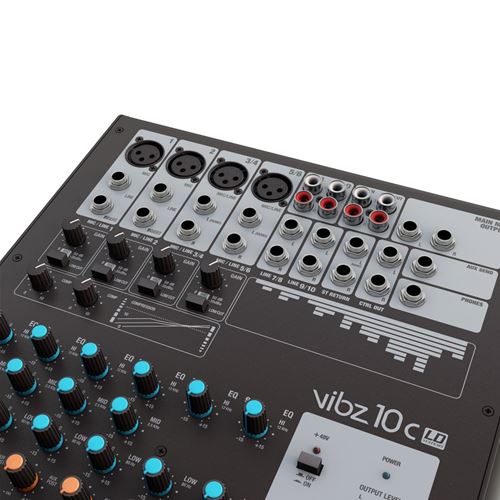

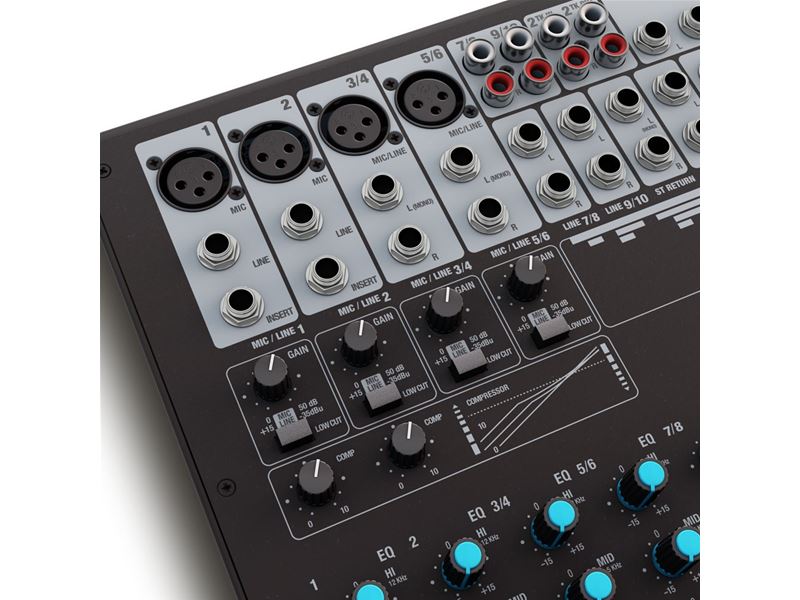

The VIBZ 10 is a versatile mixer with four balanced microphone inputs featuring high quality preamplifiers, a low-cut filter and switchable phantom power. Two microphone inputs are equipped with inserts for individual signal processing, two more can alternatively be used as stereo line channels.

For an effective sound adjustment, the VIBZ 10 has very precise 3-band EQs with conveniently selected mids; two stereo channels can be adjusted with 2-band EQs. The built-in compressor can be continuously adjusted for effective dynamics processing.

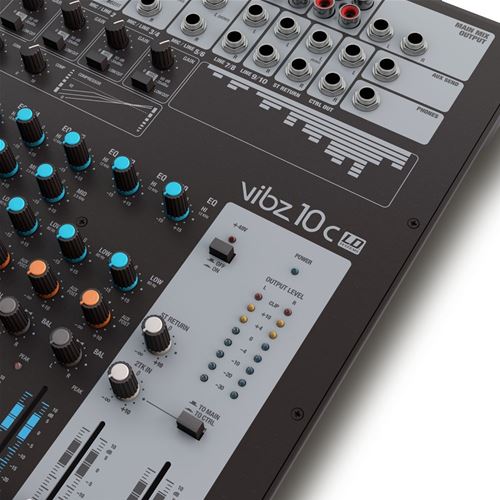

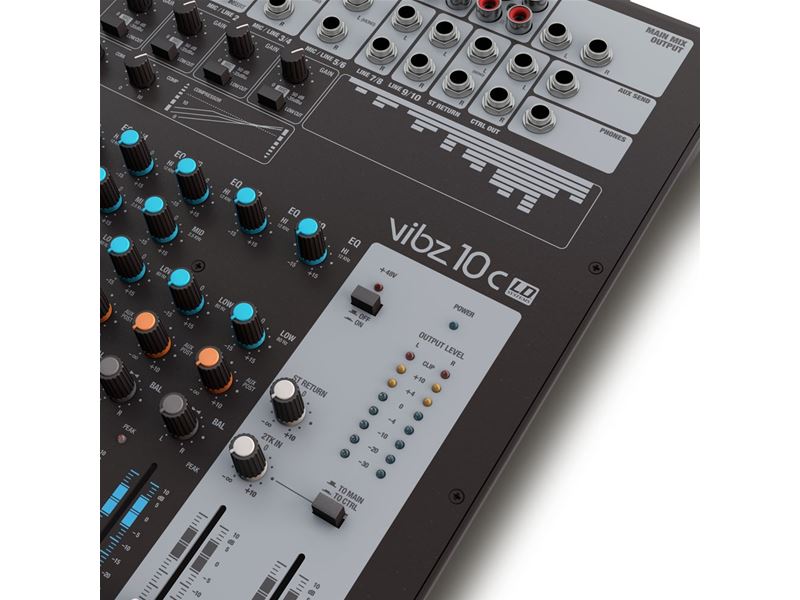

The master section of the mixer has an effects loop, adjustable monitor outputs and a headphone jack. The VIBZ 10 also has inputs and outputs for recording and playback devices; the input signal can be set on the master or monitor output and the volume adjusted.

With its transparent, detailed sound and easy operation, VIBZ 10 is the perfect choice for small bands, installations and home recording or sub mixer applications. It comes with an external power supply that can be tightly secured to the mixer. A foot switch for the effects section and an adapter for mounting the VIBZ 10 on microphone stands are available as accessories.

General

Product type	Mixers
Type	Live
Channels	10

Mono Channels:

Mono Mic and Line Input Channels	4
Mono Mic input connectors	6.3 mm TRS, XLR
Channel Inserts	2
Channel Insert Connectors	6.3 mm TRS
Mono Mic Input Type	Electronically balanced
Mono Mic Input Frequency Range	10 - 45000 Hz
Amplification Range mono Mic Input	0 - 50 dB
Mono Mic Input Input THD-N	0.0058%
Mono Mic Input Impedance	4k Ohm(s)
Mono Mic Input S/N Ratio	113 dB
Mono Line Input Type	Electronically balanced
Mono Line Input Frequency Range	10 - 45000 Hz
Amplification Range mono Line Input	0 - 50 dB
Mono Line Input Input THD-N	0.0045 %
Mono Line Input Impedance	21k Ohm(s)
Mono Line Input S/N Ratio	116 dB
Mono Channel Equalizer High	+/- 15 dB @ 12000 Hz
Mono Channel Equalizer Mid	+/- 15 dB @ 2500 Hz
Mono Channel Equalizer Low	+/- 15 dB @ 80 Hz
Controls Mono Mic and Line Input Channels	3-band EQ (High, Mid, Low), AUX (DFX) Post, Channel Volume, Compressor, Gain, Low Cut (75 Hz), pan
Phantom power	48 V DC switchable

Stereo Channels:

Stereo Line Input Channels	4
Stereo Line Input Connectors	6.3 mm TRS
Stereo Line Input Type	Electronically balanced, Unbalanced
Stereo Line Input Frequency Range	10 - 45000 Hz
Amplification Range stereo Line Input	0 - 50 dB
Stereo Line Input Input THD-N	0.0045 %
Stereo Line Input Impedance	3,7k Ohm(s)
Stereo Line Input S/N Ratio	116 dB
Stereo channel equalizer treble	+/- 15 dB @ 12000 Hz
Stereo channel equalizer mids	+/- 15 dB @ 2500 Hz
Stereo channel equalizer bass	+/- 15 dB @ 80 Hz
Controls Stereo Line Input Channels	2-band EQ (High,Low), 3-band EQ (High, Mid, Low), AUX Post, Balance, Channel Volume, Gain, Low Cut

Main Section:

AUX / Effects Send Channels	1
AUX / Effects Send Connectors	6.3 mm stereo jack unbalanced
Stereo AUX Return Channels	1 x stereo
Stereo AUX Return Connectors	6.3 mm TRS
Stereo Tape Out Channel	1 x stereo
Stereo Tape Out Connectors	2 x RCA (Cinch)
Stereo Tape In Channel	1 x stereo
Stereo Tape In Connenctors	2 x RCA (Cinch)
Unbalanced stereo Main Outputs	1
Unbalanced stereo Main Output Connections	6.3 mm TRS
Unbalanced Stereo Main Out Impedance	120 Ohm(s)
Max. Unbalanced Stereo Main Out Level	20 dBu
Stereo Control Room Out	1
Stereo Control Room Out Connectors	6.3 mm TRS
Headphones ouput	1
Headphones outputs	6.3 mm TRS
Digital Effects Processor	no
Main section controls	2-track Assignment (Main, Contr. Room), 2-track In Volume, Master Volume, Phantom Power, Phones / Control Room Volume, Stereo Return Volume
Indicators	Phantom Power, Power

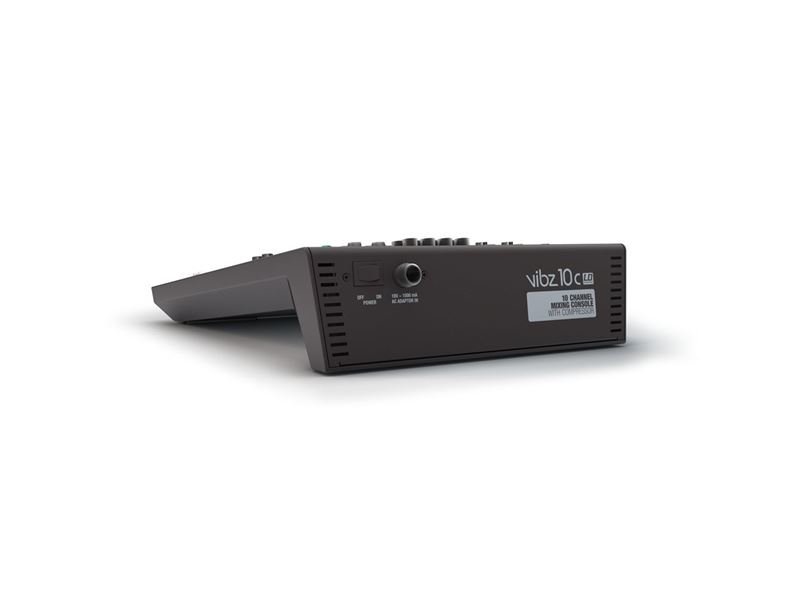

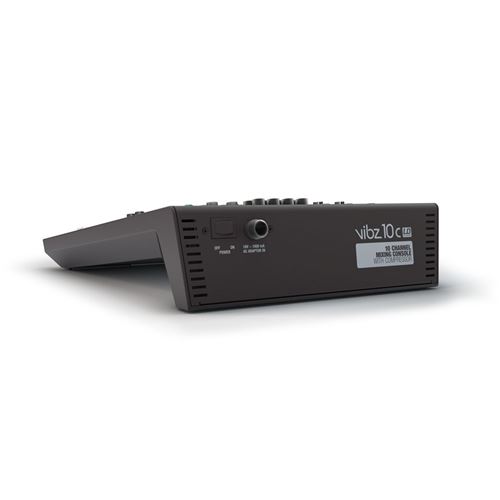

Operating voltage	18V DC - 1 A, External PSU, 230 V

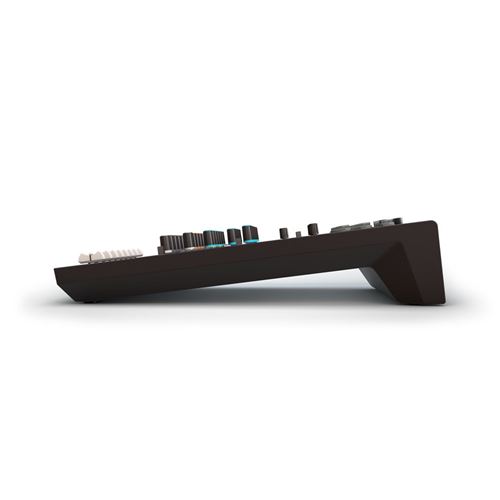

Width	265 mm
Height	78 mm
Depth	352 mm
Weight	2,3 kg
