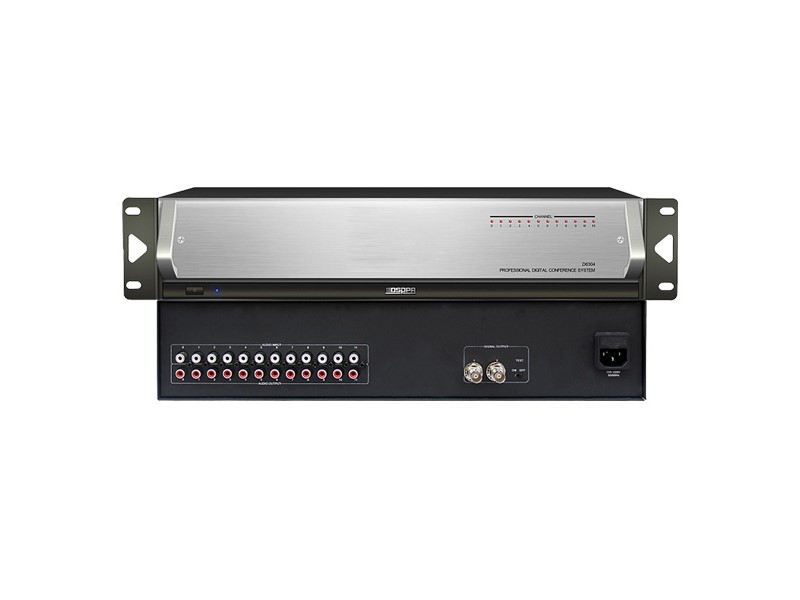

DSPPA 12 Channel Infrared Transmitting Host

D6304

DSPPA

Whatsapp for enquiry Email for enquiry






D6304 is a high-performance infrared voice distribution system, transmitting host. 2M ~ 8MHz frequency is used as carrier wave, precision PLL phase locked loop technology, advanced audio infrared FM modulation transmission mode. Infrared directional transmission, highly confidential, to prevent external malicious interference and eavesdropping. Connectable panel and conference system host.


Features

● Infrared directional transmission, highly confidential;
● It has automatic level control function(ALC);
● With high performance digital programmable phase locked chip,
● the phase locking accuracy is higher;
● It adopts advanced audio infrared FM modulation transmission;
● It has 12 groups of external audio input channels;
● With 12 sets of audio output channels ;


Model

D6304

Power Supply

AC100-240V

Static power

15W/25W

Crystal oscillator

Crystal control

Modulation(PPL)

(PPL)Frequency modulation, narrow-band

Carrier frequency

2M~20MHz(BAND4 Band)

Pre-emphasis

100 US

Deviation

±6KHz(Peak value±7KHz)

Total harmonic distortion

<1%

S/N ratio

>80dB

Freq.Re

20~10KHz

Input sensitivity

50mV-1.5V(line level)

RF output

2 way BNC anti-short plug, 100mV RMS

RF output impedance

75Ω

Machine measure

483Lx344W x 88H (mm)

Net weight

6KG
