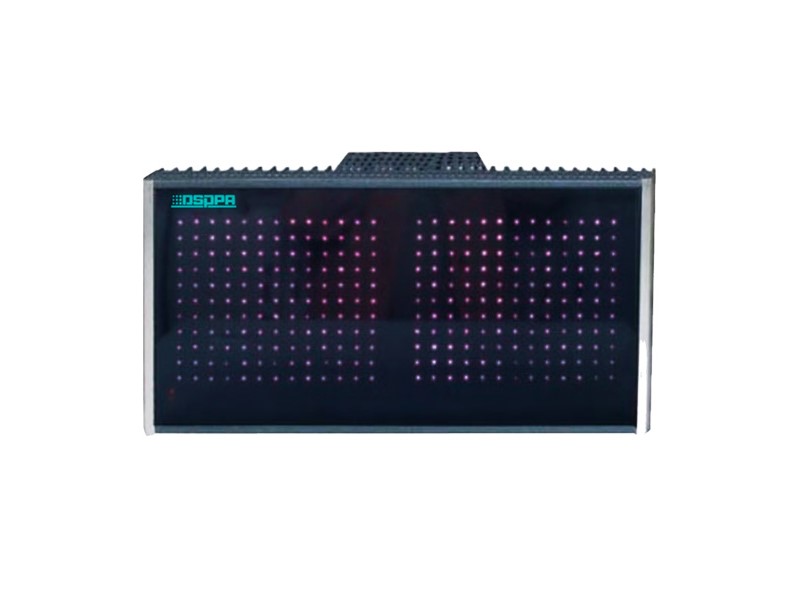

DSPPA 12 Channel Infrared Radiation Panel

D6324

DSPPA

Whatsapp for enquiry Email for enquiry






D6324 is a radiant panel with super infrared radiation capability. A wide range of transmit power can be selected with a distance of up to 50 meters (25W). With the host connection, infrared voice transmitting function can be realized.


Features

● Super launch capability, the longest distance of up to 50 meters;
● It has the function of synchronous switch withcomputer;
● A variety of transmit power adjustable (25W) to accommodate different venue environments;
● Emission intensity halving function. Reduce signal power, easy to use in small environment;
● A plurality of radiation units can be connected in series by hand in hand;
● Half angle of emission: ±30º;


Model

D6324

Power Supply

AC100~240V

Transmitted power

25W

Half angle of emission

±30°

RF input: impedance

5KΩRange:100Mv~3V

Maximum coverage distance

300m²(15W)

Color

Dark/ gray

Dimension(L×W×H mm)

666×475×230

Weight

5kgs
