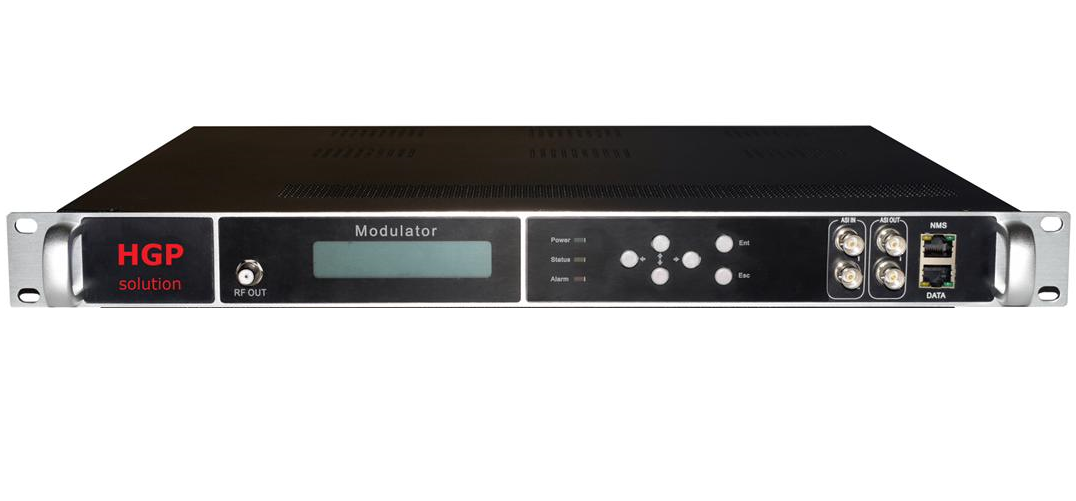

The product is H.264 encode modulator up to 8 HDMI sources.From Satellite Receiver, PC Blue ray, Local Playout, the latest new device which integrate encoding (MPEG-4 AVC/H.264) and modulation (DVB-C QAM/DVB-T Cofdm) to convert Video/Audio signals into RF over Single Coax Cable.
This unit is designed especially for high channel density Distribution Video Engineering project, which can support rapid deployment, OSD/Logo Insertion. It used in some of Hotels in the world, it is an ideal solution for enviroments where displays to an unliited number of displays over almost any distance, such as Small Digital TV system, Hotel, Stadiums, Campus, Entertainment facilities, Education Markets.
Integrate All in One Multiplexer MPEG-TS out Over 4 adjacent RF Channels as mirrored of 4 MPTS over LAN network. It is also characterized with high integrated, high performance and breakthrough price.
Features
- Distribute 8 channels of HD content over RF (DVB-T/C) to an unlimited number of TVs
- 1 DVB-C/T/ISDB-Tb tuner input for re-mux (scrambling function optional for DVB-C RF out version)
- 4 MPTS IP over UDP/RTP as mirror of RF Channels
- MPEG-4 AVC/H.264 Video encoding
- MPEG1 Layer II, LC-AAC, HE-AAC audio encoding format and AC3 Pass Through
- Audio gain adjustment supported
- 4 DVB-C or DVB-T carrier out with each carrier channel processing maximum 32 IP from DATA input port
- Selectable the Value of PCR PID same as Video PID
- VBR and CBR mode
- LCN (Logical Channel Number) support
- DVB-C (EN300 429) abd ITU-T J.83A/B supported
- PSI/SI editing & inserting
- PID Remapping & Filtering
- Support PCR correct and PCR interval adjusting
- Support LOGO, OSD and QR code insertion for every local channel
- Easy-to-Use System Management via Web
- Low Cost per channel - Breakthrough Price !
