Compact Line Array Systems

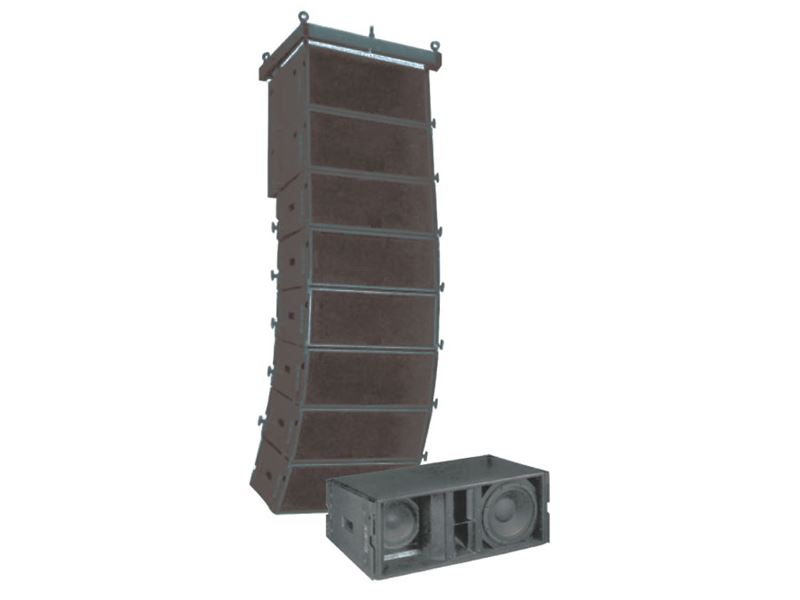

CLA 108F

IVA

Whatsapp for enquiry Email for enquiry






Engineered to meet the needs of real-world application. Both of our MLA and CLA series line array systems maximize the benefits of line array. Our line array system is designed for applications requiring high sound pressure levels and control of the vertical coverage such asmid to large scale outdoor/indoor events in arenas, stadiums or theaters. Capable to be Ground Stack or Flyable.

Features (CLA 108F)
- Precision and high efficiency linearity array
- Max. SPL handling: 123dB when high-power (single)
- Frequency bandwith:60Hz-18KHz ± 3dB (single)
- Level  Bestrow: 90 degree (-6dB), MF or HF control mode
- Point-blank loading
 - 1 x 10" low hardware, sensitivity: 101dB (1w/1m) (single)
 - 1 x 8" middle hardware, sensitivity:103dB (1w/1m) (single)
 - 2 x 1" high hardware, sensitivity: 106dB (1w/1m) (single)
- Speedy and integrated hang parts, adjustable bestrow angle from 0 to 7 degree
- Can be combined with CLA-115S as integrated Line array system

Features (CLA 115S Subwoofer)
CLA115S is the newest subwoofer with high capability in a compact cabinet. It can be hung as array system or ground
stacked. With wide low frequency and high capability output, it features 15" woofer with 4" voice coil
