Boundary Installation Condenser Microphone

IVA 914

IVA

Whatsapp for enquiry Email for enquiry

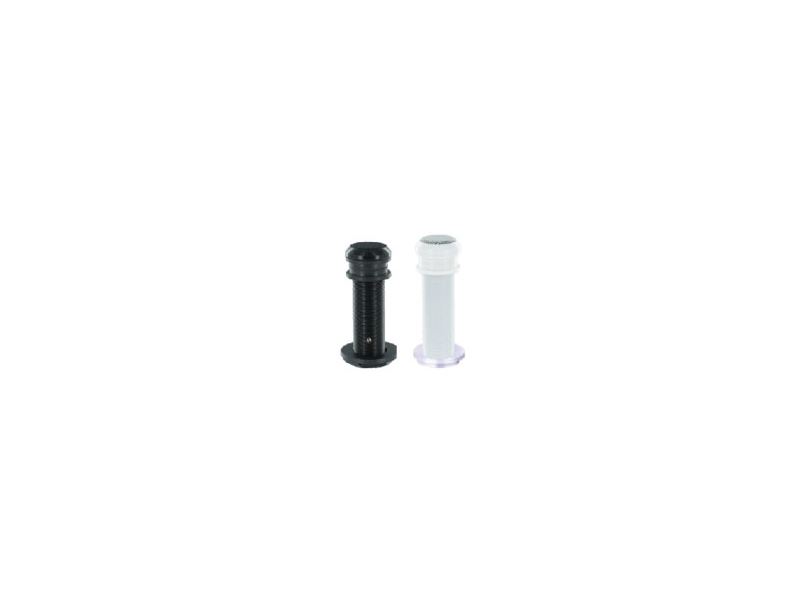

The IVA 914 boundary microphone is designed to have the flexibility in any installation situation. It is ideal for permanent installations. IVA 914 is a miniature, phantom powered condenser Microphones that offers flexibility for surface mounted installations. Its compact and lightweight design enables it to be flushed mounted on tables, platforms, podiums walls or ceiling.

Specifications
Elements   : Back Electric Condenser
Polar Pattern   : Omni directional
Frequency   : 20 ~ 18,000 Hz
Sensitivity   : -63dB ± 3dB (0dB = 1µbar @ 1KHz)
Impedance   : 250ohm ±30% (@1KHz)
Material   : Copper
Operating Voltage  : 9V ~ 52V DC Phantom Power w/ built-in circuitry
Connector   : XLR (male)
Dimensions   : Ø28 x 3mm

Applications
Conferences
Houses of worship
Executive boardrooms
Courtrooms
Ticket windows
Reception desks
Bank counters
