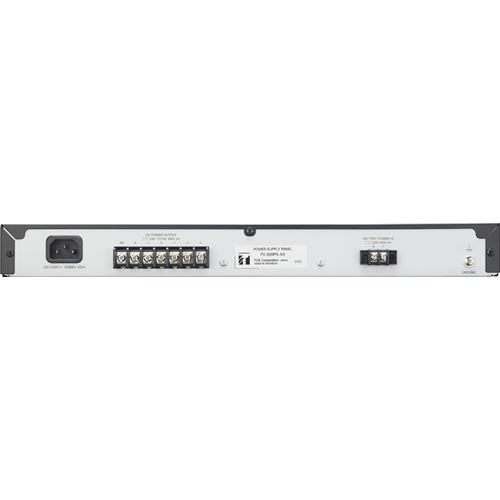

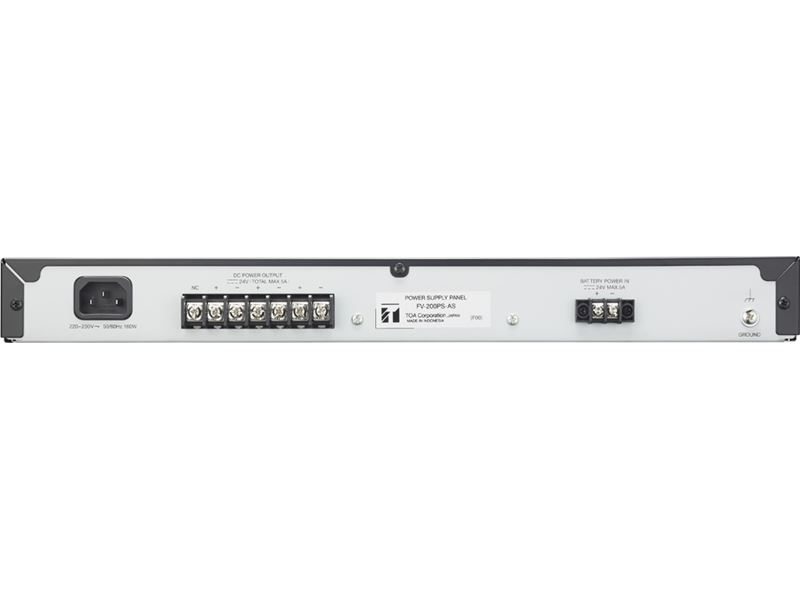

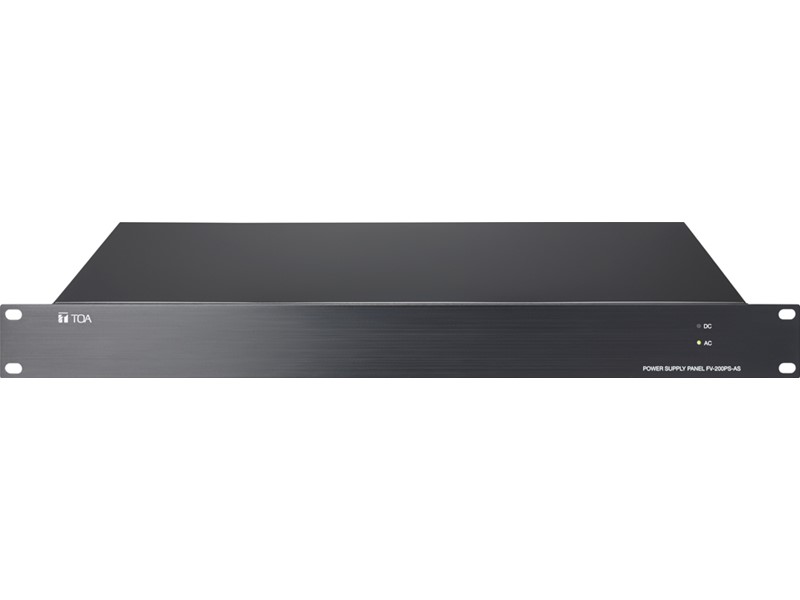

The FV-200PS Switching DC Power Supply Panel supplies 24V DC power to each component of FV-200 Series Voice Evacuation System. In additional, the DC power supply shall connect to an emergency power supply for uninterrupted DC power during AC power failure.
| Power Source | 220 - 230 V AC, 50/60 Hz
24 V DC (operating range: 19.5 - 27 V), M3 screw terminal |
|---|---|
| Power Consumption | 160 W (275 VA) at rated power output (230 V AC operation) |
| Output | AC Operation : 24 V DC ±1, 5A (total)
DC Operation : Voltage lowering DC input voltage approx. by 2 V, M4 screw terminal |
| Display | AC Power (Green), AC Power (Orange) |
| Operating Temperature | 0 ℃ to +40 ℃ |
| Operating Humidity | Under 90% RH (no condensation) |
| Finish | Front Panel : Aluminum, black, alumite |
| Dimensions | 482 (W) × 44 (H) × 335 (D) mm |
| Weight | 3.2 kg |
| Accessory | Power cable (YA-301 or YA-313) |
