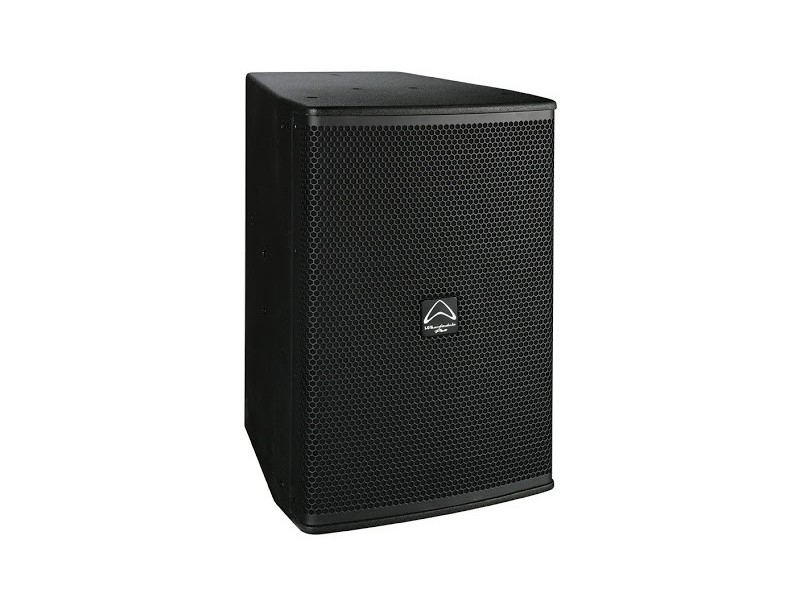

WHARFEDALE PRO K6000 Series 400 Watts RMS 12" 2-Way Passive Installation Speaker

K6012

Wharfedale Pro

Whatsapp for enquiry Email for enquiry






K6012

400 watts
AES (RMS)
  • 12″ 2-way passive
  • 3.0″ LF voice coil
  • 400 watts AES (RMS)
  • 800 watts Programme
  • 1600 watts Peak
  • 129 dB Max SPL @ 1 meter

K6000 is a series of 3 premium, high output and superior performance full range speakers, specifically engineered for fixed entertainment space installations.

The LF transducers are a low distortion design using ferrite magnets with a built-in aluminium ring for optimum heat dissipation. The HF compression drivers have a 1.75” voice coil and use a polyethylene (pe) diaphragm for maximum vocal intelligibility in enclosed spaces. This HF compression driver is coupled to a 70° x 70° waveguide for smooth dispersion regardless of horizontal or vertical placement.


The cabinet of K6000 series is made of high quality 15mm multi-layer birch plywood. This plywood is covered with a black, wear-resistant paint treatment. The cabinet is trapezoidal and is equipped with two Neutrik speakON nl4mp connectors.


With 13 x M8 threaded suspension points and a further 6 x M8 points in a 100mm configuration, installation at any angle is simple and easy.
The hexagonal hole steel front grille and inner foam lining protects the drive units from dust or insects. In addition, the iconic Wharfedale Pro logo on the front grille is rotatable to ensure that K6000 looks great in any orientation.


K6000 – the premium entertainment loudspeaker from Wharfedale Pro.
Take a listen!

  • Premium components for premium sound
  • 3.0″ voice coils (K6012 and K6015)
  • 70° x 70° rounded waveguides
  • 15 mm Birch plywood construction
  • 19 x M8 rigging points
  • Top and side M8 points with 100 mm width
  • Integral 35 mm pole sockets
  • Rotatable front grille logo
  • Custom polyethylene HF diaphragm
  • 1.75″ HF compression driver voice coils


Model Name K6012
System Type Passive
Configuration two-way
Frequency Response (+/-3 dB) 60 Hz-20 KHz
Sensitivity 2.83 v/1 meter 97 dB
Calculated Maximum SPL @ 1 m 129 dB
System Rated Impedance 8 Ω
Low Frequency Transducer
Size (mm / inches) 305 mm / 12”
Voice Coil Size (mm / inches) 75 mm / 3.0”
LF Magnet Material Ferrite
LF Frame Material Aluminium
Rated Impedance 8 Ω
High Frequency Transducer
HF Driver Type: Compression Driver
Voice Coil Size (mm / inches) 44mm / 1.75”
Diaphragm Material Polyethylene
Nominal Coverage (H x V) 70° x 70°
Power
System Continuous Power 400 w
System Programme Power 800 w
System Peak Power 1600 w
Crossover frequency 3.75 KHz
Input Connector 2 x Neutrik NL4MP
Rigging M8 * 19
Pole mount 35 mm pole socket
Handles NO
Cabinet type Trapezoid
Enclosure Material and finish 15 mm plywood
Colour Options Black paint
Grille Material & Finish Steel
Dimensions – Unpacked
Height 600 mm
Width Front 350 mm
Width Rear 242 mm
Depth 382 mm
Net Weight 24.3 kg
